1300MMx2000MMx90MM Outdoor Soccer Scoreboard With Waterproof Cabinet

  • 1
  • 2
  • 3

Brand Name : Linger

Model Number : LFS-8D300R-VTN

Certification : CE/ROHS/FCC/ETL/TUV

Place of Origin : Zhejiang,China

MOQ : 1 Unit

Price : Negotiation

Payment Terms : T/T, Western Union,Paypal, Credit Card

Supply Ability : 10000pcs Per Month

Delivery Time : 15 ~ 18 Working Days after received Payment

Packaging Details : Film+1-3 cm Foam + Paper cardboard each/ Wooden case exporting

Format : Game Time + Score + Name

Digit Size : 12'' 300mm

Led Color : Red

Logo : Customized

Brightness : Outdoor / Indoor Model

Digit Model : DIP

Warranty : 15 Months

Team Name : Max 6 Letters 140mm Height

Contact Now

1300MM X 2000MM X 90MM Soccer Scoreboard

Soccer Scoreboard With Led Team Name

Name Soccer Scoreboard
Brand Linger
Type No. LFS-8D300R-VTN
Board Size 1300mm H * 2000mm L * 90mm T
Led Chip Color Red
Digit Height 12inch 300mm
Power Supply AC110V ~ 240V , 50-60Hz
Control Model Wireless / Wire Control Box
Team Name 192mm H *768mm L * 2Names,Max 8 Letters /Name
Mounting Bracket Brackets / Tripod / Sucker Support
Front Face Acrylic Panel + Inkjet Printing Film
Frame Color Black or Silver Color (Option) Durable and elegant Aluminum Frame
Acrylic Lens Best Quality and Non- Reflective
Power Plug UK,Europe,China,Australia,USA,etc..
Whole Product Completely Silent Operation and Minimal Generated
Waterproof Waterproof Cabinet for Outdoor
LOGO Customized
Life Span 100000 Hours

Main Function

(A) Game Time - Display Time , Countdown or Cout up
(B) Score - 2Digits for each Team
(C) Team Name - 8 Letters for each Name

(D) Start / Stop / Reset

(E) Horn - Sound when time reach to 0

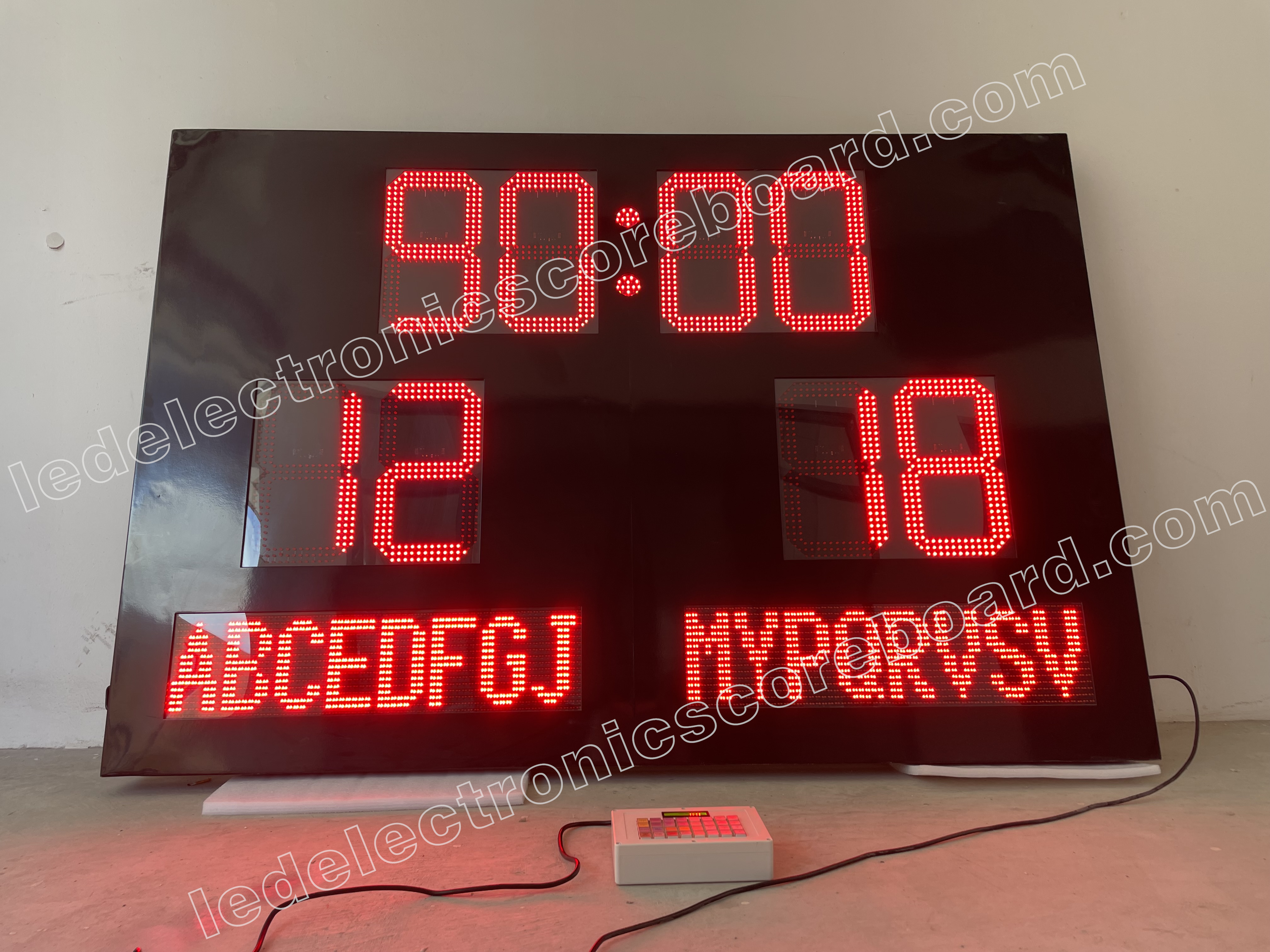

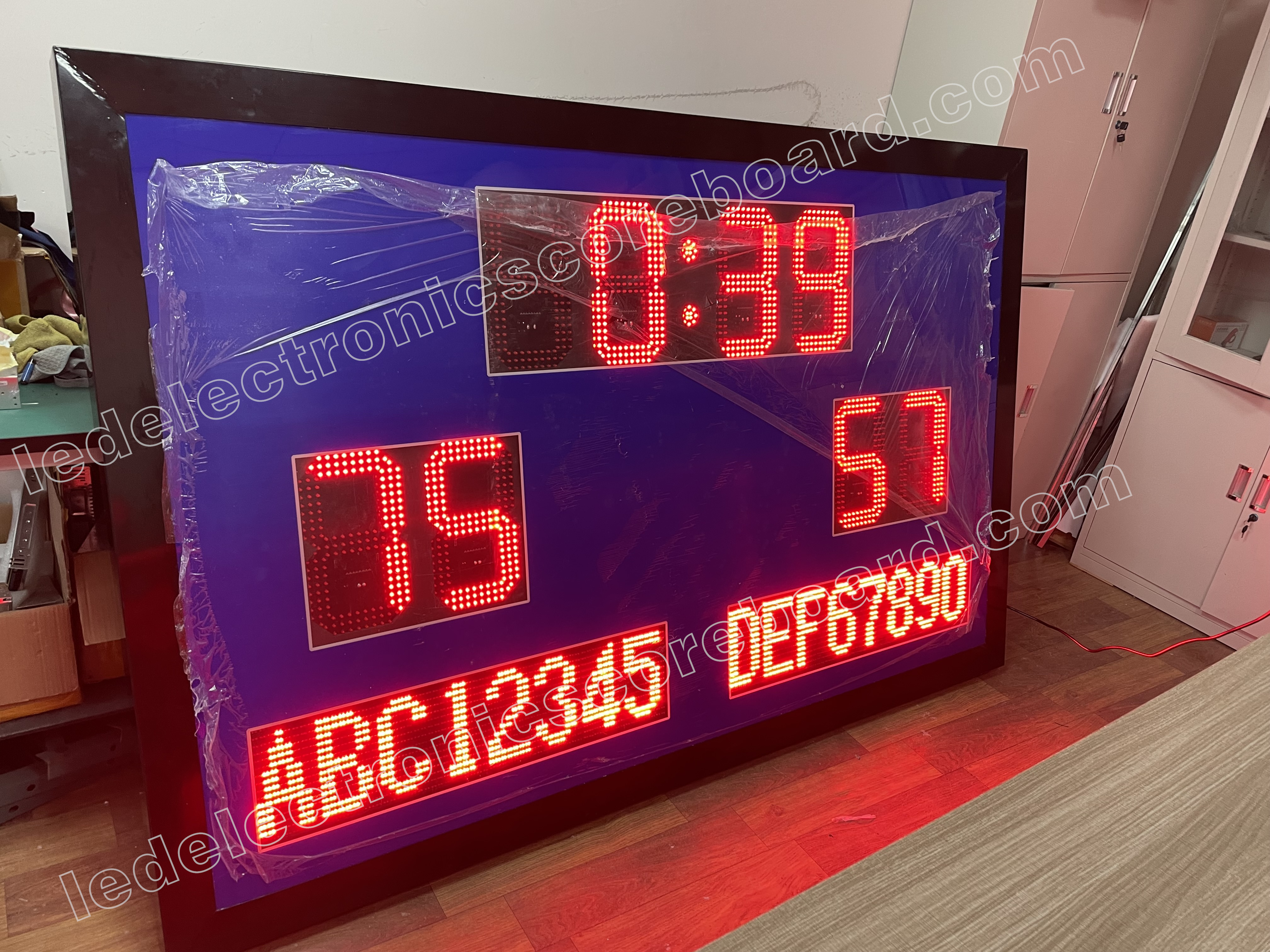

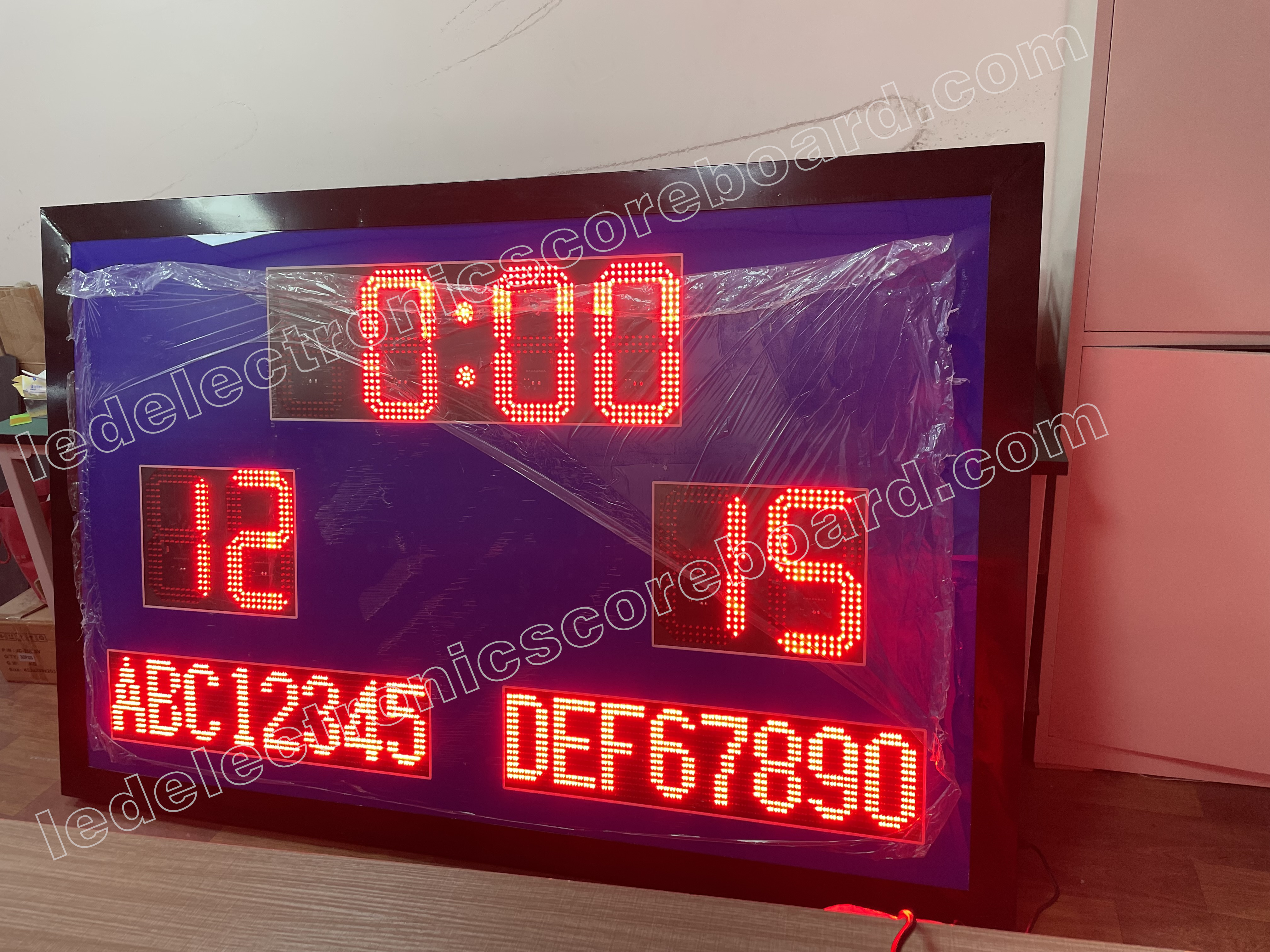

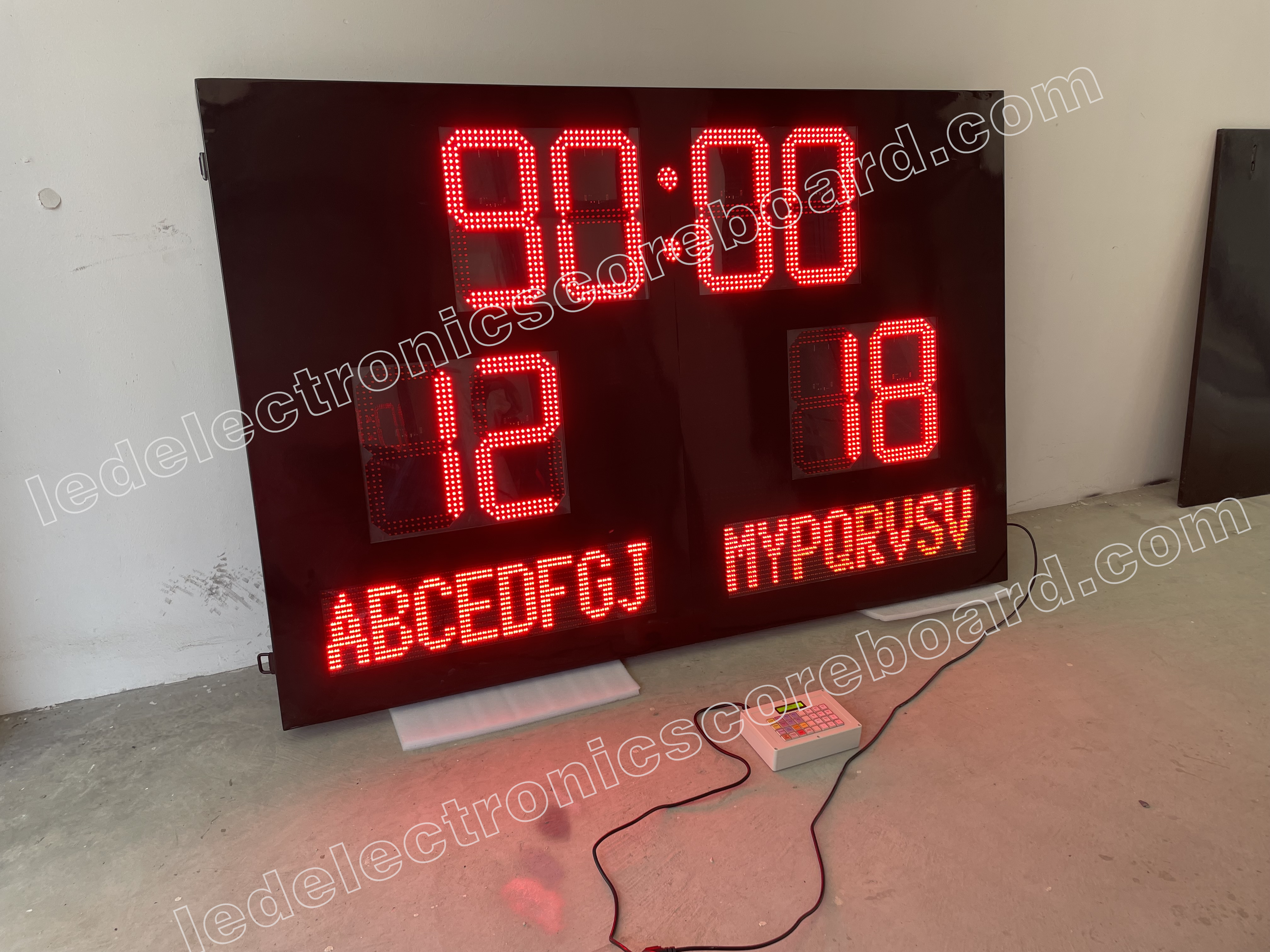

1300MMx2000MMx90MM Outdoor Soccer Scoreboard With Waterproof Cabinet

1300MMx2000MMx90MM Outdoor Soccer Scoreboard With Waterproof Cabinet

1300MMx2000MMx90MM Outdoor Soccer Scoreboard With Waterproof Cabinet

Digit Advantage

1. Simple Horn Socket
The Simple Horn Socket can lock the Signal Cable Heat to Prevent it from Falling off during shock.
2. Large Value Capacitor
It is Avaliable for Rectification Filtering.
3. Large Value Chips
These 2 Chips can Improve the signal and make the signal Immune to External Interference . With Separate Control Function.
4. SMD Resistor
The Chip Resistor will protect the Led Current to Extend the Lamp Life.
5. Transistor
The Transistor can Guarantee High - Current Driver without any problems

Delivery Details :

Order Quantity < 500 : 7days ~ 8days.
Order Quantity < 1000 : 10days ~ 15days.
Order Quantity > 1000 : 15days ~ 20days.
Sea Shipment need 25days to arrive.
Air and Express Shipment need 3-5days to arrive.

1300MMx2000MMx90MM Outdoor Soccer Scoreboard With Waterproof Cabinet

1300MMx2000MMx90MM Outdoor Soccer Scoreboard With Waterproof Cabinet
